MAIN TECHNICAL PARAMETERS

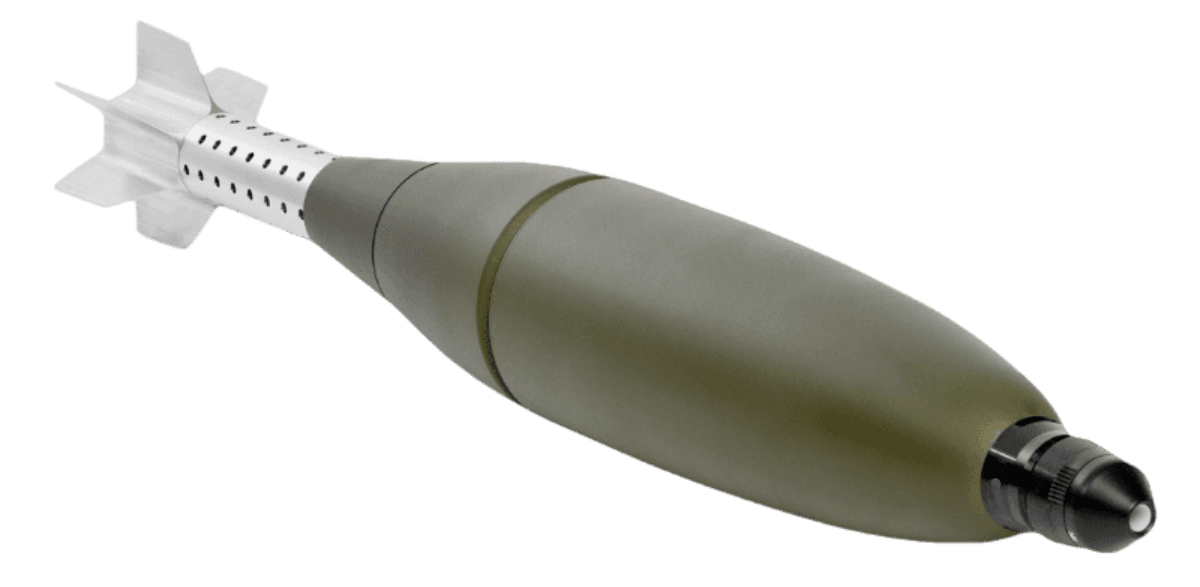

Mortar Bomb Type: HE
CALIBER (mm): 60
- Maximum Effective Range, (m) : 2 554
- Length of fuzed mortar bomb, (mm): 312
- Barrel length, (mm): 819/1 000
- Weight of mortar bomb, (kg) : 1.56
- Material of body : Cast iron
- Explosive filling type : TNT
- Weight of explosive charge, (kg): 0.2
- Average muzzle velocity, (m/s) : 200
- Max. average pressure, Pmaxaver, (kgf/cm2) : 450
- Fuze type ( Point Detonating) : M-6N (or suitable)
- Operational temperature range, ( °C) : -50 to + 60
- Destruction area (m2) : 15
Mortar Bomb Type: HE
CALIBER (mm): 81
- Maximum Effective Range, (m) : 4 335
- Length of fuzed mortar bomb, (mm) : 486
- Weight of mortar bomb, (kg) : 4.15
- Material of body : Cast iron
- Explosive filling type : TNT
- Weight of explosive charge, (kg) : 0.74
- Number of propellant charges : 1 + 4 Increment charges
- Average muzzle velocity, (m/s) : 241
- Max. average pressure, Pmaxaver, (kgf/cm2) : 450
- Fuze type : Point Detonating: M-6N (or suitable)
- Operational temperature range, ( °C): : -50 to + 60
Mortar Bomb Type: HE
CALIBER (mm): 120
- Maximum Effective Range, (m) : 5 850
- Length of mortar bomb, (mm) : 674
- Weight of mortar bomb, (kg) : 16
- Material of body : Cast iron
- Explosive filling type : TD-50 (or substitute)
- Weight of explosive filling, (kg) : 1.56
- Number of charges: 1 + 6 Increment charges
- Weight of propellant charge, (kg): 0.435
- Weight of explosive filling in charge, (kg): 0.353
- Average muzzle velocity at 6th charge, (m/s): 274
- Max. average pressure, Pmaxaver, (kgf/cm2): 1030
- Fuze type: M-12 (or suitable)
- Weight of explosive filling in fuze, (kg): 0.023
- Operational temperature range, ( °C): -50 to + 60
